About this item

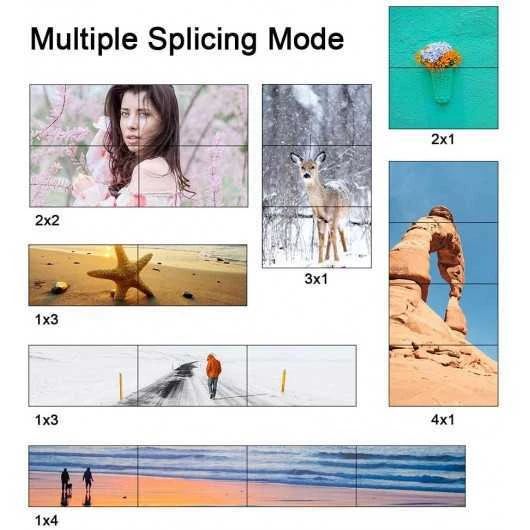

Multiple splicing mode with 4 HDMI outputs (2×2, 1×4,4×1,1×2, 2×1, 3×1, 1×3, max 4×5 for multiple devices cascade connections).

Support 3840*2160 4K@60Hz HDMI 2.0, 3840*2160 4K@30Hz HDMI 1.4, and 3840*2160 4K@60Hz DP 1.2 inputs, you can display them at the same time.

Support multiple display mode preset, and one key quickly call to switch display.

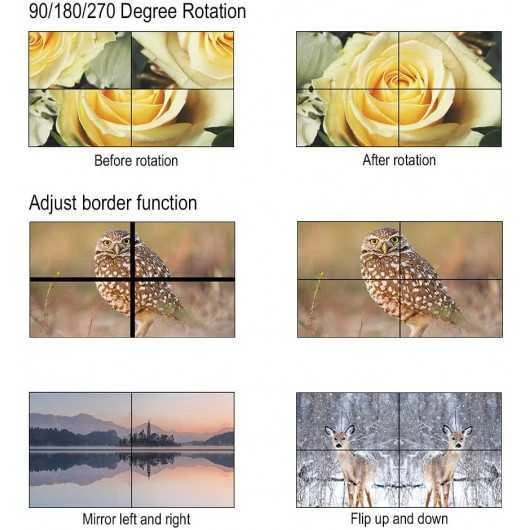

Support 90/180/270 degree or mirror display, and crop image, edge mask functions.

Support IR control and Panel Button Control.

FIND OUT ABOUT…LINK LM TV04P !

The video wall controller

LINK LM TV04P is a box that allows you to display a cascaded image on several screens simultaneously, it has several inputs to connect different devices. It comes with a remote control and includes many buttons for easy handling.

Display quality

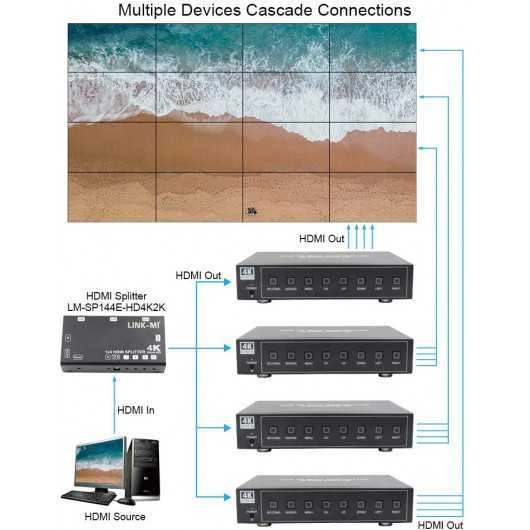

The LINK LM TV04P is designed to distribute the video signal to multiple display units including TVs, projectors and more. It supports high resolution 3840*2160@60Hz and also supports cascading connections of multiple devices with up to 20 TVs. The device also supports image rotation by 90 or 270 degrees for vertical display of portraits on screen, each output can be rotated by 180 degrees to reduce the sticking gap. It also has an Intelligent Temperature Control function to make the product’s heat dissipation representation more stable, reliable and durable.

Control

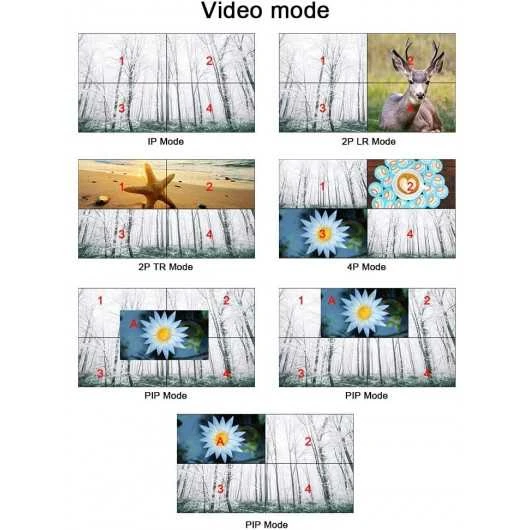

With the device, you can choose one or more input sources to display synchronously. It comes with a remote control but also via the buttons on the front of the device. You have the possibility to choose the source, enter the menu and go up, down, left and also right. It allows configuration and saving of 9 display presets to facilitate its control. The LINK supports various splicing modes for the 4 t TVs including 2×2, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1.

Connectivity

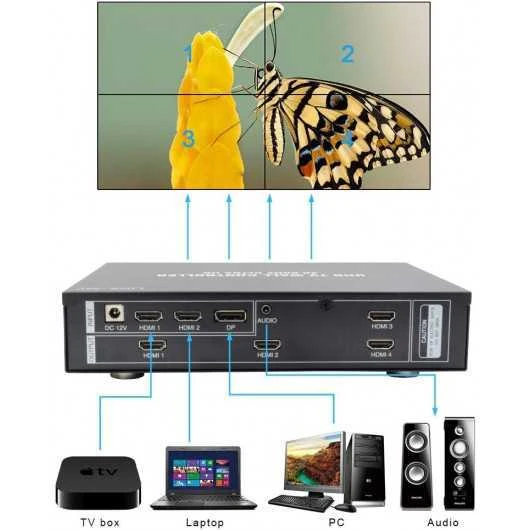

It has several inputs to connect a wide range of devices such as your TV box and computers, whether laptop or desktop. It has two HDMI inputs, one DP input, one analog audio output and 4 HDMI outputs. It has an input for a 12V adapter that allows you to connect it directly to your power outlet.

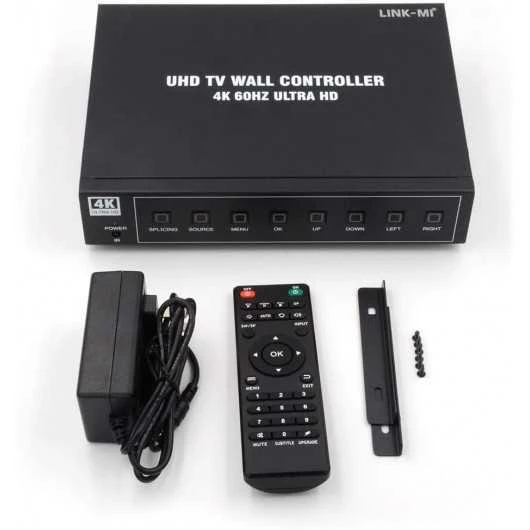

Package included

– 1x 4K60 UHD Video Wall Controller

– 1x 12VDC PowerAdapter

– 1x RemoteController

– 1x Operating Instructions

– 1x Mounting ear 1 pair
